2300 Series Parts Manual Bottom Module

- 8 -

56 4

9 10

8 116

Note the hole pattern of

the plenum closure

door angles. This will

distinguish between

L.H. and R.H.

Frame / Auger Trough / Hopper Bulkheads

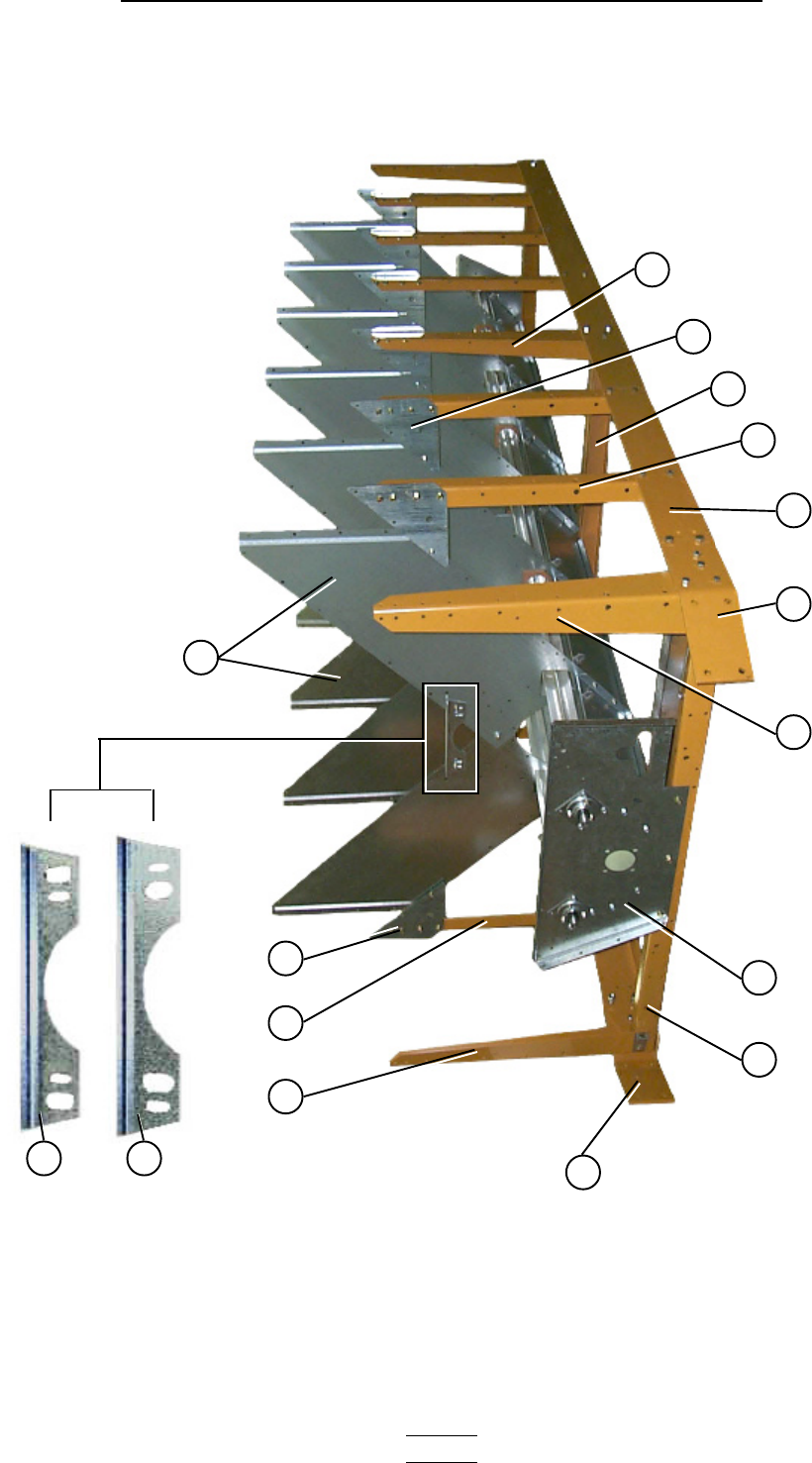

Dryer frame and lower basket assembly (view from the

front end of the dryer looking down the left side).

**NOTE: The parts pointed out on this page are listed on page 11.
